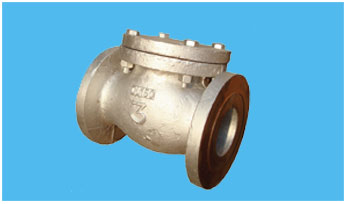

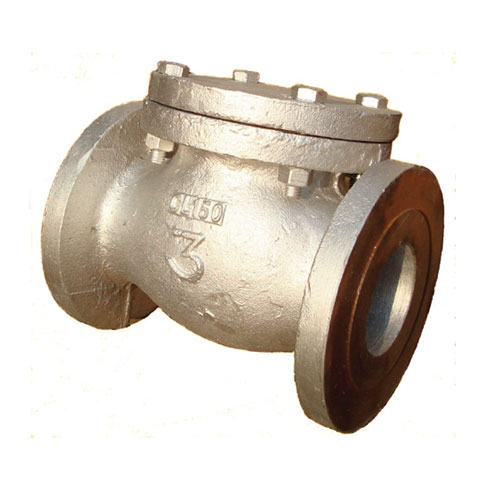

Features
- Design prohibits galling or scoring of seating because the disc meets the flat seat securely on closing with no rubbing action
- M.S Hinges
- Replacable M.S Hinge Pins
- Large Bolted on cover
- Flanges as per ANSI B 16.5 CL-150
- Bolted Bonnet
- Size Range : 1 ½”- 8”
- Packing Graphite Asbestos
- Gaskets Compressed Asbestos Fiber
|

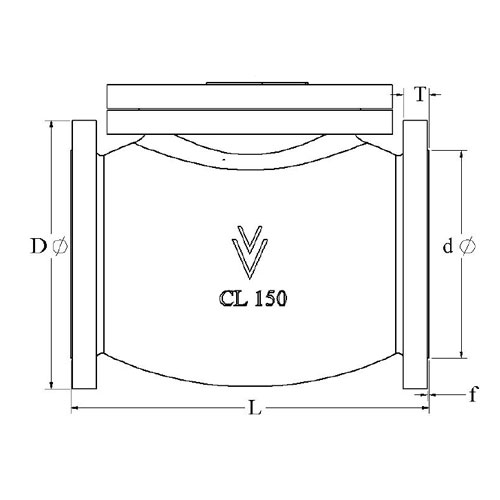

| Dimensions |
| Nominal Size |
Flange TO Flange L |
D Ø(Dia.) |
Raised Face Dia. d Ø |
H Appx. |
T (Thickness) |
| inch. |
mm |
inch. |
mm |
inch. |
mm |
inch. |
mm |
mm |
inch |
mm |
| 1 |
25 |
5 ¼ |
135 |
4 ¼ |
110 |
2 7/8 |
73 |
90 |
7/16 |
13 |
| 1 ¼ |
32 |
6 3/8 |
162 |
4 5/8 |
122 |
3 5/8 |
92 |
100 |
½ |
17 |
| 1 ½ |
40 |
6 ½ |
165 |
5 |
127 |
4 1/8 |
105 |
100 |
9/16 |
14.3 |
| 2 |
50 |
8 |
203 |
6 |
152 |
5 |
127 |
105 |
5/8 |
15.9 |
| 2 ½ |
65 |
8 ½ |
216 |
7 |
178 |
6 3/16 |
158 |
115 |
11/16 |
17.5 |
| 3 |
80 |
9 ½ |
241 |
7 ½ |
190 |
7 5/16 |
186 |
130 |
¾ |
19.0 |
| 4 |
100 |
11 ½ |
292 |
9 |
229 |
8 ½ |
215 |
150 |
15/16 |
23.8 |
| 5 |
125 |
13 |
330 |
10 |
254 |
2 7/8 |
73 |
185 |
15/16 |
23.8 |
| 6 |
150 |
14 |
356 |
11 |
279 |
3 5/8 |
92 |
195 |
1 |
25.4 |
|
|
- 1/16 inch Raised Face is regularly furnished on CL 150 unless otherwise specified.
- The height of raised face is included in minimum flange thickness for CL 150.
|
