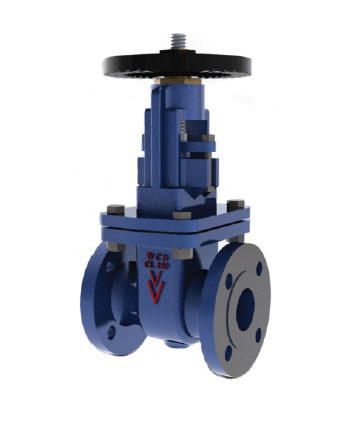

Features
- Tapered Solid Wedge Disc.
- Body Guide Ribs
- 13% Cr. S.S Body Ring & Seat
Ring.
- Stem Provided with ACME
Double Start
- Packing Graphited Asbestos
- Gaskets Compressed Asbestos Fibre
- Flanges as per ANSI B 16.5 CL-150 R.F.
- Bolted Bonnet
- Size Range : 1 ½”- 6"
- Seating: S.S
- Stem : S.S AISI 410
|

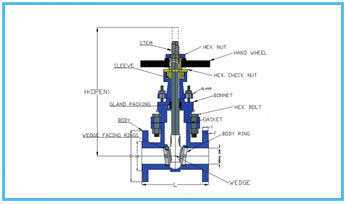

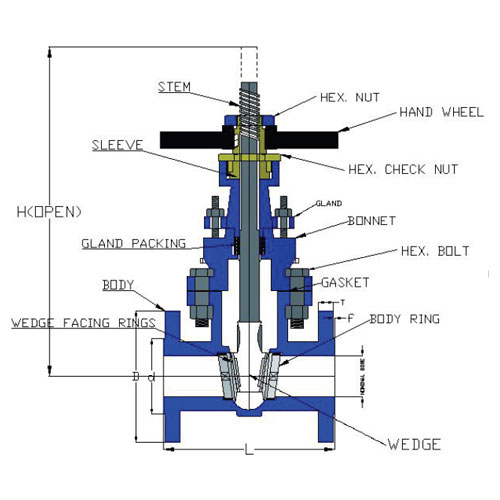

| Dimensions |
| Nominal Size |
L |
D (Dia.) |
Raised Face Dia. d |
H (Open) Appx. |
T (Thickness) |
| inch. |
mm |
inch. |
mm |
inch. |
mm |
inch. |
mm |
mm |
inch |
mm |
| 1 ½ |
40 |
6 ½ |
165 |
5 |
127 |
2 7/8 |
73 |
330 |
9/16 |
14.3 |
| 2 |
50 |
7 |
178 |
6 |
152 |
3 5/8 |
92 |
370 |
5/8 |
15.9 |
| 2 ½” |
65 |
7 ½ |
190 |
7 |
178 |
4 1/8 |
105 |
425 |
11/16 |
17.5 |
| 3 |
80 |
8 |
203 |
7 ½ |
190 |
5 |
127 |
455 |
¾ |
19.0 |
| 4 |
100 |
9 |
229 |
9 |
229 |
6 3/16 |
158 |
620 |
15/16 |
23.8 |
| 5 |
125 |
10 |
254 |
10 |
254 |
7 5/16 |
186 |
725 |
15/16 |
23.8 |
| 6 |
150 |
10 ½ |
267 |
11 |
279 |
8 ½ |
215 |
770 |
1 |
25.4 |
|
|
- 1/16 inch Raised Face is regularly furnished on CL 150 unless otherwise specified.
- The height of raised face is included in minimum flange thickness for CL 150.
|
