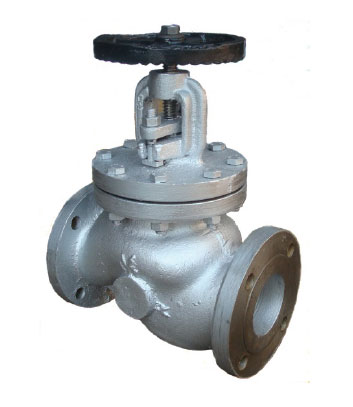

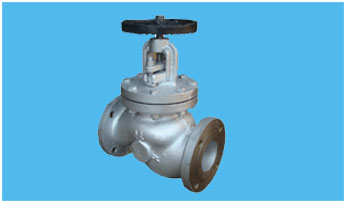

Features
- Integral yoke bonnet
- Valves are provided with a Back Seat
- 13% Cr. S.S Body Ring & Seat Ring or G.M Trim.
- Packing Graphited Asbestos
- Gaskets Compressed Asbestos Fibre
- Flanges as per DIN 2545
- Bolted Bonnet
- Size Range : 15 mm- 150 mm
- Seating: S.S
- Stem : S.S AISI 410
|

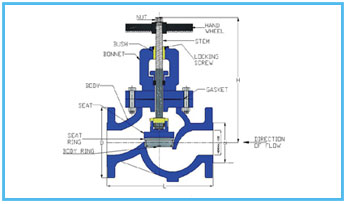

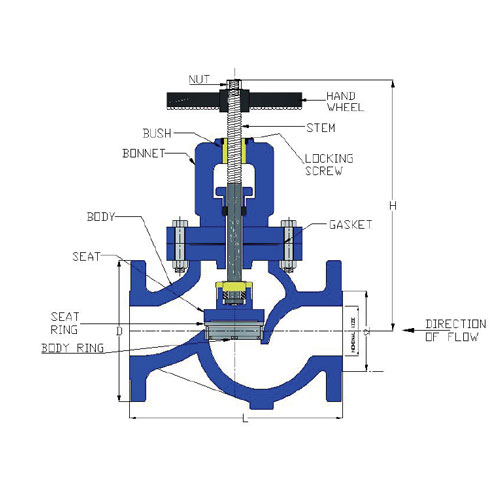

| Dimensions |
| Nominal Size |
L |
D (Dia.) |
Raised face dia. d Ø |
H (Appx.) |
T (Thickness) |
| mm |
mm |
mm |
mm |
mm |
mm |
| 15 |
130 |
95 |
45 |
180 |
14 |
| 20 |
150 |
105 |
58 |
180 |
16 |
| 25 |
160 |
115 |
60 |
185 |
16 |
| 32 |
180 |
140 |
63 |
200 |
18 |
| 40 |
200 |
150 |
74 |
250 |
18 |
| 50 |
230 |
165 |
92 |
270 |
20 |
| 65 |
290 |
185 |
105 |
340 |
20 |
| 80 |
310 |
200 |
127 |
380 |
22 |
| 100 |
350 |
220 |
156 |
450 |
24 |
| 125 |
400 |
250 |
187 |
530 |
26 |
| 150 |
480 |
285 |
215 |
600 |
26 |
|
|
- 1/16 inch Raised Face is regularly furnished on CL 150 unless otherwise specified.
- The height of raised face is included in minimum flange thickness for CL 150.
|
