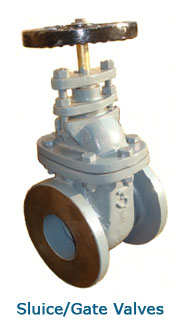

Sluice/Gate Valve

    FEATURES :
    • Tapered Solid Wedge Disc
    • Integral Seats
    • Stem Provided with ACME Double Start
    • Packing Graphited Asbestos
    • Gaskets Compressed Asbestos Fibre
    • Size Range 1 ½” - 10"
    • Seating : Iron/Renewable G.M Seat Rings/ Renewable S.S Seat Rings
    • Stem : M.S/ S.S AISI 410/ Extruded Brass  Rod
    • Every Valve is individually tested
    • Flanges as per B.S 10 Table ‘D’ / Table ‘E’

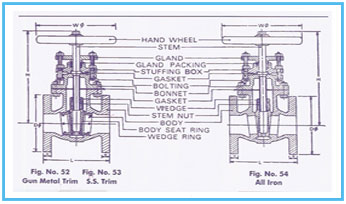

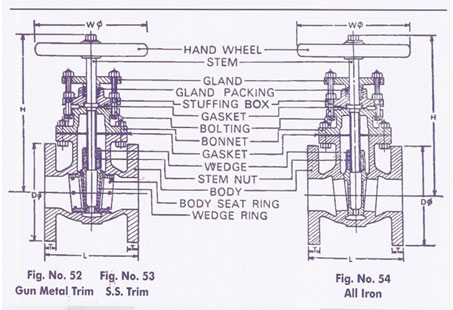

Dimensions

Nominal Size

L

D (Dia.)

H (Open) Appx.

T (Thickness)

inch.

mm

inch.

mm

inch.

mm

mm

inch

mm

1 ¼

32

5 5/8

143

5 ¼

133

215

5/8

16

1 ½

40

5 5/8

143

5 ¼

133

215

5/8

16

2

50

6

152

6

152

245

11/16

17.5

2 ½”

65

6 ¼

159

6 ½

165

270

11/16

17.5

3

80

6 ¾

172

7 ¼

184

300

¾

19

4

100

7 ¼

184

8 ½

216

375

¾

19

5

125

7 ¾

197

10

254

420

¾

20.5

6

150

8

203

11

279

480

¾

20.5

7

175

8 ¾

222

10

305

575

7/8

22

8

200

9 ¼

235

13 ½

337

635

7/8

22

10

250

13

330

16

406

725

1

25.5
