Horizontal Lift Check Valve


FEATURES :

  • Globe type body design with full flow area
  • Design prohibits galling or scoring of seating because the disc meets the flat seat securely on closing with no rubbing action
  • Flanges as per DIN 2533 PN 16
  • Bolted Bonnet
  • Size Range : 15 mm – 150 mm
  • Packing Graphited Asbestos
  • Gaskets Compressed Asbestos Fibre

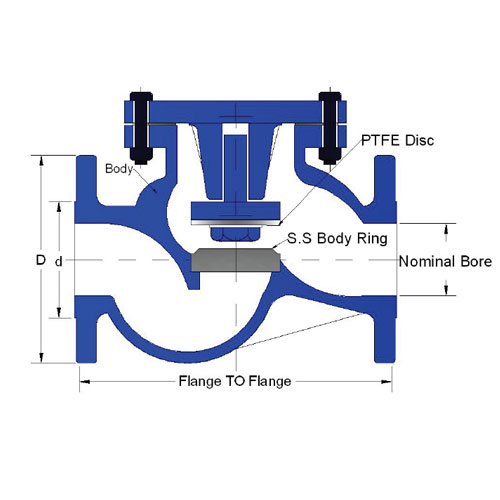

Dimensions

Nominal Size

Flange TO Flange L

 (Dia.)
D  Ø

Raised face dia. d Ø

H (Appx.)

T (Thickness)

mm

mm

mm

mm

mm

mm

15

130

95

45

85

14

20

150

105

58

85

16

25

160

115

68

90

16

32

180

140

78

100

18

40

200

150

88

120

18

50

230

165

102

130

20

65

290

185

122

160

20

80

310

200

138

170

22

100

350

220

158

190

24

125

400

250

188

215

26

150

480

285

212

240

26
