Globe Valve Straight and Angle Pattern

Features
  • Integral yoke bonnet
  • Valves are provided with a Back Seat
  • 13% Cr. S.S Body Ring & Seat Ring or G.M  Trim.
  • Stem Provided with ACME Threads
  • Packing Graphited Asbestos
  • Gaskets Compressed Asbestos Fibre
  • Flanges as per DIN 2533
  • Bolted Bonnet
  • Size Range : 15 mm- 150 mm
  • Seating : S.S / G.M
  • Stem : S.S AISI 410

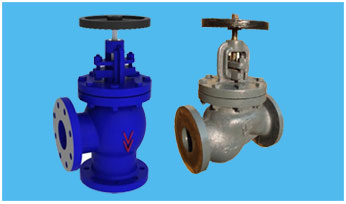

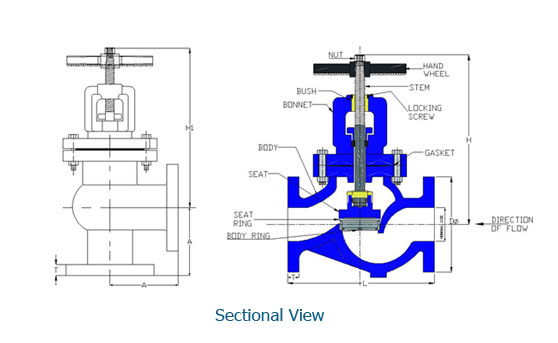

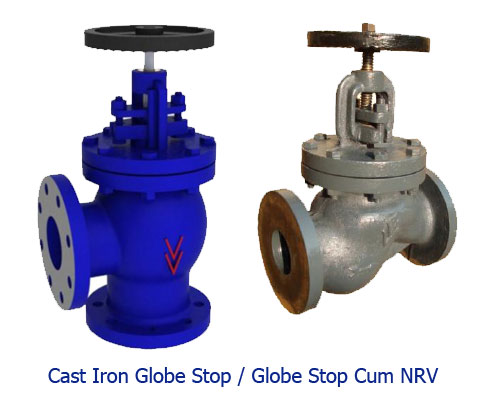

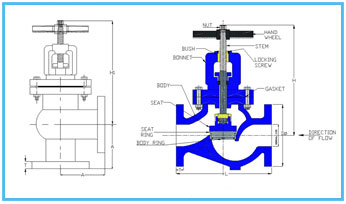

Dimensions

Nominal Size

L

D (Dia.)

H (Appx.)

T (Thickness)

mm

mm

mm

mm

mm

15

130

95

180

14

20

150

105

180

16

25

160

115

185

16

32

180

140

200

18

40

200

150

250

18

50

230

165

270

20

65

290

185

340

20

80

310

200

380

22

100

350

220

450

24

125

400

250

530

26

150

480

285

600

26
