Gate Valve Rising Stem


Feature

  • Tapered Solid Wedge Disc.
  • Body Guide Ribs
  • Stem Provided with ACME Double Start
  • Packing Graphited Asbestos
  • Gaskets Compressed Asbestos Fibre
  • Flanges as per ANSI B 16.5
  • Bolted Bonnet
  • Size Range : 1 ½”- 10"
  • Seating Iron/ S.S/G.M
  • Stem : M.S/S.S

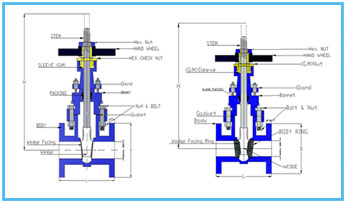

Dimensions

Nominal Size

L

D (Dia.)

H (Open) Appx.

T (Thickness)

inch.

mm

inch.

mm

inch.

mm

mm

inch

mm

1 ½

40

6 ½

165

5

127

330

9/16

14.3

2

50

7

178

6

152

370

5/8

15.9

2 ½

65

7 ½

190

7

178

425

11/16

17.5

3

80

8

203

7 ½

190

455

¾

19.0

4

100

9

229

9

229

620

15/16

23.8

5

125

10

254

10

254

725

15/16

23.8

6

150

10 ½

267

11

279

770

1

25.4

8

200

11 ½

292

13 ½

343

965

1 1/8

28.6

10

250

13

330

16

406

1164

1 3/16

30.2
