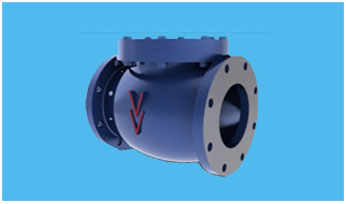

Cast Iron Swing Check (Reflux) Valve


FEATURES :

  • Design prohibits galling or scoring of seating because the disc meets the flat seat securely on closing with no rubbing action
  • M.S Hinges
  • Replacable M.S Hinge Pins
  • Large Bolted on cover
  • Flanges as per ANSI B 16.1 CL-125
  • Bolted Bonnet
  • Size Range : 1”- 10”
  • Packing Graphite Asbestos
  • Gaskets Compressed Asbestos Fiber

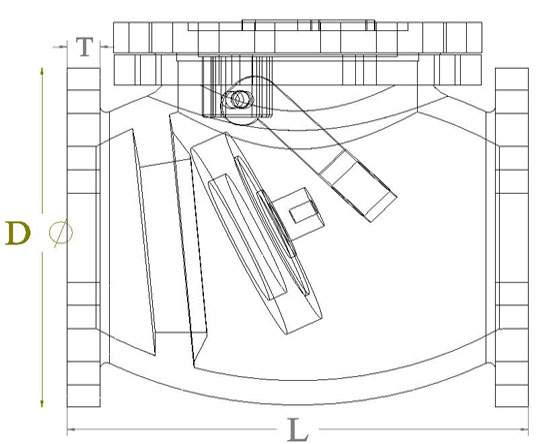

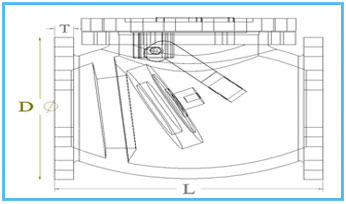

Dimensions

Nominal Size

Face To Face L

D (Dia.)

H Appx.

T (Thickness)

inch.

mm

inch.

mm

inch.

mm

mm

inch

mm

1

25

5 ¼

135

4 ¼

110

90

7/16

13

1 ¼

32

6 3/8

162

4 5/8

122

100

½

17

1 ½

40

6 ½

165

5

127

100

9/16

14.3

2

50

8

203

6

152

105

5/8

15.9

2 ½

65

8 ½

216

7

178

115

11/16

17.5

3

80

9 ½

241

7 ½

190

130

¾

19.0

4

100

11 ½

292

9

229

150

15/16

23.8

5

125

13

330

10

254

185

15/16

23.8

6

150

14

356

11

279

195

1

25.4

8

200

19 ½

495

13 ½

343

230

1 1/8

28.6

10

250

24 ½

622

16

406

300

1 3/16

30.2
