Globe Valve Straight and Angle Pattern

AVAILABILITY:

“V V” Cast Iron Globe Stop and Cum NRV are available in straight or right angle pattern with flanged connections in sizes 15mm (1/2”) to 150mm (6”).


APPLICATION:

These Valves are suitable for fresh water, steam, oil and Vapour Service for the following pressure and temperature:

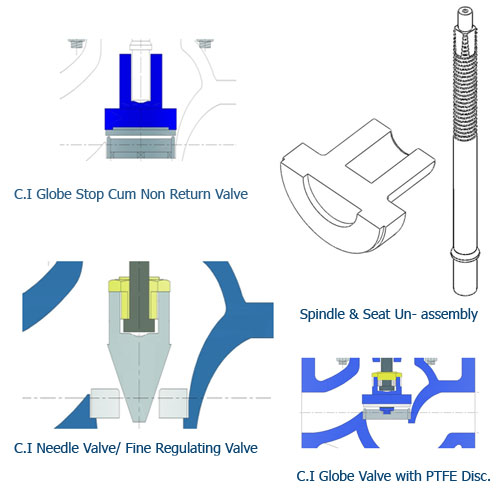

Sectional View
Size Range Maximum Working Pressure Maximum Working Temperature Test Pressure Hyd.
Body Seat
15mm to 150mm 10 kg/cm2 200    C 24 Kg/cm2 16 Kg/cm2

Dimensions

Nominal Size

A

D (Dia.)

H1 (Appx.)

T (Thickness)

mm

mm

mm

mm

mm

15

80

95

165

14

20

95

105

165

16

25

100

115

165

16

32

105

140

195

18

40

115

150

210

18

50

125

165

245

20

65

145

185

270

20

80

155

200

300

22

100

175

220

350

24

125

200

250

385

26

150

225

285

435

26
