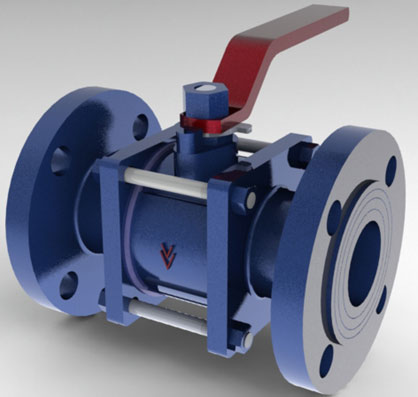

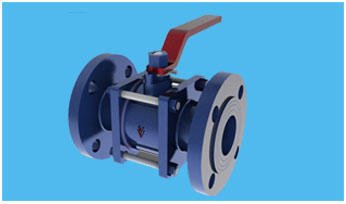

Cast Iron Ball Valve


SPECIFICATION:

“V V” Cast Iron Ball Valve Three Piece design with S.S 304 working parts, Full bore, M.S Lever operated, Blow out Proof stem, Floating Ball, Flanged Ends, Flanges as per ASA Class-150.


DESIGN FEATURES: The following design features make these valves superior to other design of valves available:-

  1. Three piece valve itself acts as union. The parts which might require servicing can be removed from the valve without disturbing the end connections.
  2. Mirror finish smooth ball.
  3. Full bore (Excellent flow).
  4. Quarter Turn shut off, blow out proof stem.
  5. No lubrication and maintenance required.
  6. Superior for temperature up to 198oC.
  7. Spring washers are placed behind the nut to prevent external shocks during transportation.
  8. Superior quality Bolts and Nuts are used to with stand external and internal loads.
  9. Suitable for oil, Water, Air, Gas, Steam and Chemical, etc.

MATERIALS:

Following materials are used as standard in the construction of these valves.

Materials other than those can also be given against specific requirements.
Sr. No. NAME OF PART MAERIALS
1. Stem S.S (13% Cr.)
2. Lever Nut M.S
3. Stopper M.S
4. Washer PTFE
5. Ring PTFE
6. Ball S.S 304
7. Body Connector Cast Iron
8. Stud & Nuts M.S
9. Lever M.S
10. Gland Nut M.S
11. Body Cost Iron
TESTING AND CERTIFICATION:

All valves are tested to cold non-shock hydrostatic test pressures tabulated below:

Our own works TEST CERTIFICATE for materials and pressure testing can be provide with every supply.
NOMINAL SIZE GAUGE TEST PRESSURE bar
Shell Seat
1/2”(15mm) To 6”(150mm) 24.1 13.8

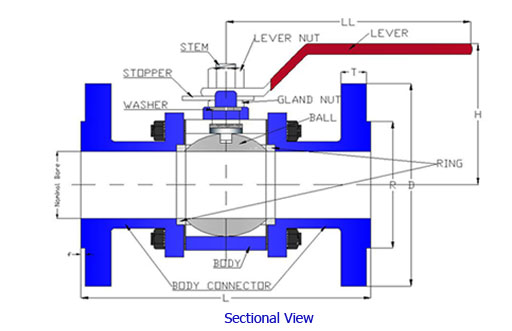

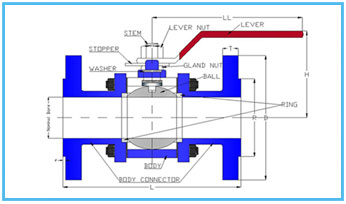

Dimensions
Nominal Size L D (Dia.) H (Appx.) T (Thickness)
min.
LL
(Appx.)
R f
mm mm mm mm mm mm mm mm
15 130 95 60 14.3 135 45 2
20 130 100 66 15.9 155 50 2
25 140 108 68 17.5 155 60 2
32 165 117 105 19.1 165 63 2
40 165 127 105 20.6 190 73 3
50 203 152 120 22.2 190 92 3
65 222 177 127 25.4 285 104 3
80 241 190 140 28.6 285 127 3
100 305 228 152 31.8 325 157 3
125 368 254 220 36.5 610 185 3
150 394 279 224 36.5 610 215 3
